LSHW (Hardware Lister)
Obtención de especificaciones de hardware en Linux
LSHW es una herramienta que proporciona información detallada sobre la configuración de hardware de la máquina.
Como por ejemplo la configuración de memoria exacta, la versión de firmware , Mainboard configuración,la versión de CPU y la velocidad,la configuracion de cache, la velocidad del BUS, etc...
La información puede ser de salida en formato de texto, HTML o XML.
En la actualidad apoya DMI (x86 y sólo EFI), árbol de dispositivos OpenFirmware (PowerPC), PCI / AGP, ISA PnP (x86), CPUID (x86), IDE / ATA / ATAPI, PCMCIA (sólo probados en x86), y USB SCSI.
Para obtener el listado de especificaciones de hardware hay que usar el comando "lshw" ("ls" de Lister y "hw" de hardware) como superusuario o mediante "sudo":
-sudo lshw
Con esa orden aparece un extenso y detallado listado con las características técnicas de la máquina en la que se ejecute. Como el listado resultante es muy largo se puede acotar a un área concreta, mediante el parámetro "-C"
EJEMPLOS
Acotar al procesador:
-sudo lshw -C processor
Acotar a los discos duros:
-sudo lshw -C disk
Acotar a la memoria RAM:
-sudo lshw -C memory
Acotar a la tarjeta de sonido:
-sudo lshw -C sound
Acotar a los dispositivos de conexión a Internet:
-sudo lshw -C communication
Para poder leerlo de forma más cómoda se puede guardar en formato HTML:
-sudo lshw -html > nombre-de-archivo.html
También se puede guardar en XML:
-sudo lshw -html > nombre-de-archivo.html
Existe un front-end gráfico:
-gtk-lshw.
=================================================================
REQUERIMIENTOS
Linux 2.4.x or 2.6.x (2.2.x might work, though)
a PA-RISC, Alpha, IA-64 (Itanium), PowerPC or x86 based machine
an ANSI (or close enough to ANSI compliance) C++ compiler (tested with GCC 2.95.4 and 3.2.2)
for the (optional) GTK+ graphical user interface, you will need a complete GTK+ 2.4 development environment (gtk2-devel on RedHat/Fedora derivatives)
Actualmente soporta DMI (x86 and EFI only), OpenFirmware device tree (PowerPC only), PCI/AGP, ISA PnP (x86), CPUID (x86), IDE/ATA/ATAPI, PCMCIA (only tested on x86), USB and SCSI.
=================================================================
VERCIONES
La última versión es la B 02.12.01.
http://ezix.org/software/files/lshw-B.02.12.01.tar.gz
Otras verciones disponibles en SourceForge.net. :
VERCIONES PRECOMPILADAS
Mandriva Linux
*incluye lshw como un paquete estándar.
Gentoo Linux http://www.gentoo.org/
*incluye lshw como un paquete estándar.
los paquetes están disponibleS : http://packages.gentoo.org/
Debian http://www.debian.org/
los paquetes están disponible para muchas plataformas :
http://packages.debian.org/lshw
Fedora http://fedoraproject.org/
Ahora incluye lshw:
-sudo yum install lshw lshw-gui
instala lshw y su GUI.
RPM para RedHat Linux(7.x & 9), RedHat Enterprise Linux 2 & 3) y Fedora Core(1, 2 & 3)
disponibles en :
=================================================================
INSTALACION
DESEMPAQUETAR:
tar xvfz lshw-release.tar.gz
COMPILAR:
cd lshw-release
make
CREAR "optional GUI":
make gui
CONSTRUIR RPM package:
rpmbuild -ta lshw-release.tar.gz
O INCLUIR "optional GUI":
rpmbuild -ta --with gui lshw-release.tar.gz
=================================================================
EJEMPLOS DE VISUALIZACION

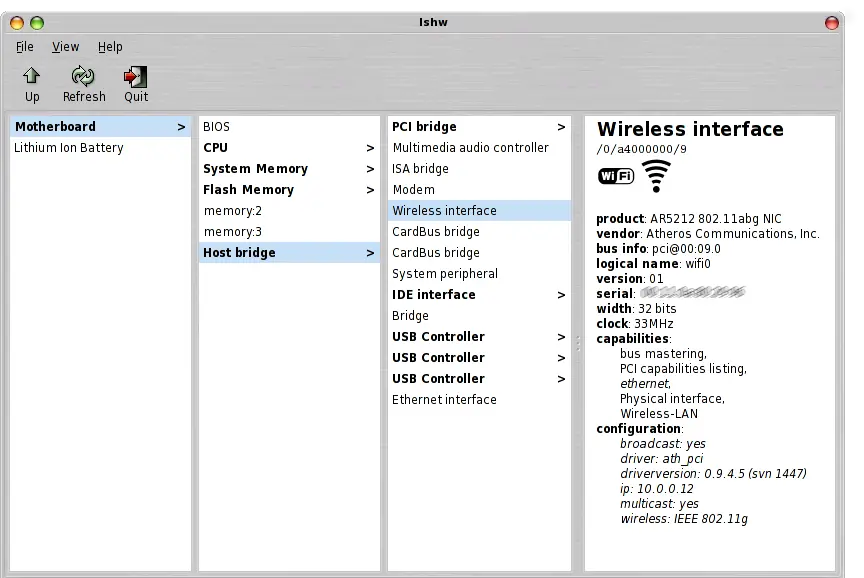

*****ordenador personal de Escritorio GTK + interfaz de usuario gráfico (gtk-lshw)
==============================================================
*****Apple PowerMac dual G4 1.25GHz, 768MB memory
ioscan-like output (lshw -short)
==============================================================
H/W path Device Class Description
==============================================================
system Computer
/0 bus
/0/fff00000 memory BootROM
/0/0 /proc/device-tree memory OpenFirmware 3
/0/1 memory System memory
/0/1/0 memory Memory bank
/0/1/1 memory Memory bank
/0/1/2 memory Memory bank
/0/1/3 memory Memory bank
/0/2 processor CPU
/0/2/0 memory L1 Cache
/0/2/1 memory L2 Cache (unified)
/0/3 processor CPU
/0/3/0 memory L1 Cache
/0/3/1 memory L2 Cache (unified)
/0/100 bridge Host bridge
/0/100/10 /dev/fb0 display VGA compatible controller (VGA)
/0/101 bridge Host bridge
/0/101/17 generic KeyLargo Mac I/O
/0/101/17/1 ide1 bus Channel 0
/0/101/17/1/0 /dev/hdc disk IDE CD-ROM
/0/101/17/1/0/0 scsi0 storage SCSI storage controller
/0/101/17/1/0/0/0 bus Channel 0
/0/101/17/1/0/0/0/0 /dev/dvd disk DVD reader
/0/101/18 bus USB Controller (OHCI)
/0/101/19 bus USB Controller (OHCI)
/0/101/1b bus USB Controller (OHCI)
/0/101/1b.1 bus USB Controller (OHCI)
/0/101/1b.2 bus USB Controller (EHCI)
/0/102 bridge Host bridge
/0/102/d generic UniNorth 2 ATA/100
/0/102/d/2 ide2 bus Channel 0
/0/102/d/2/0 /dev/hde disk ATA Disk
/0/102/e bus FireWire (IEEE 1394) (OHCI)
/0/102/f eth0 network Ethernet controller
==============================================================
*****Dell OptiPlex GXa Pentium II 266MHz 192MB memory
==============================================================
dell
product: OptiPlex GXa 266L EM+
vendor: Dell Computer Corporation
serial: NL2SC
capabilities: smbios-2.2 dmi-2.2
*-core
*-firmware
description: BIOS
vendor: Dell Computer Corporation
version: A10 (06/23/00)
size: 64KB
capacity: 192KB
capabilities: isa pci pnp apm upgrade shadowing escd cdboot bootselect edd int13floppytoshiba int13floppy360 int13floppy1200 int13floppy720 int13floppy2880 int5printscreen int9keyboard int14serial int17printer int10video
*-cpu
product: Pentium II (Klamath)
vendor: GenuineIntel
slot: Microprocessor
size: 266MHz
capacity: 333MHz
clock: 66MHz
capabilities: fpu fpu_exception wp vme de pse tsc msr pae mce cx8 sep mtrr pge mca cmov mmx
*-cache:0
description: Internal L1 Cache
size: 32KB
capacity: 32KB
*-cache:1
description: Pipeline burst Synchronous External L2 write-back Cache
size: 512KB
capacity: 512KB
*-memory
description: System Memory
slot: System board or motherboard
size: 192MB
capacity: 384MB
*-bank:0
description: DIMM DRAM Synchronous 64 bits
slot: DIMM_A
size: 64MB
*-bank:1
description: DIMM DRAM Synchronous 64 bits
slot: DIMM_B
size: 64MB
*-bank:2
description: DIMM DRAM Synchronous 64 bits
slot: DIMM_C
size: 64MB
=================================================================
MAS INFORMACION http://ezix.org/project/wiki/HardwareLiSter
HOME http://ezix.org/project
Saludos!!!!!
