ps ay pa los que quieran saber sobre comon van los fusibles de sus honda, ps ahi estan mas o menos...espero y les sirva, gracias por los comentarios....
Contents:
- 1996-2000 Honda Civic
- 1992-1995 Honda Civic
- 1993-1997 Honda del Sol
Scroll down for others. Titles are in red.
****Special thanks to RARE_EG2 for the underhood diagrams for the del Sol.***
1996 - 2000 Civic

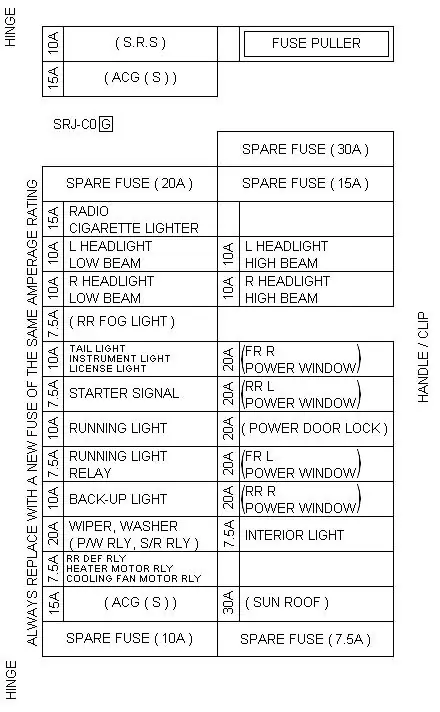

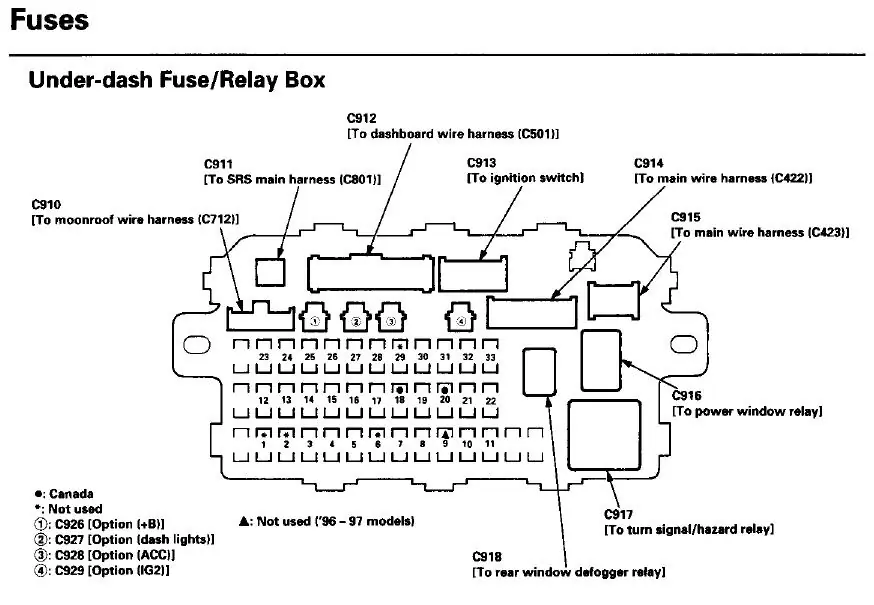

1996 - 2000 Civic * IN CAR * Printable, to keep in your car

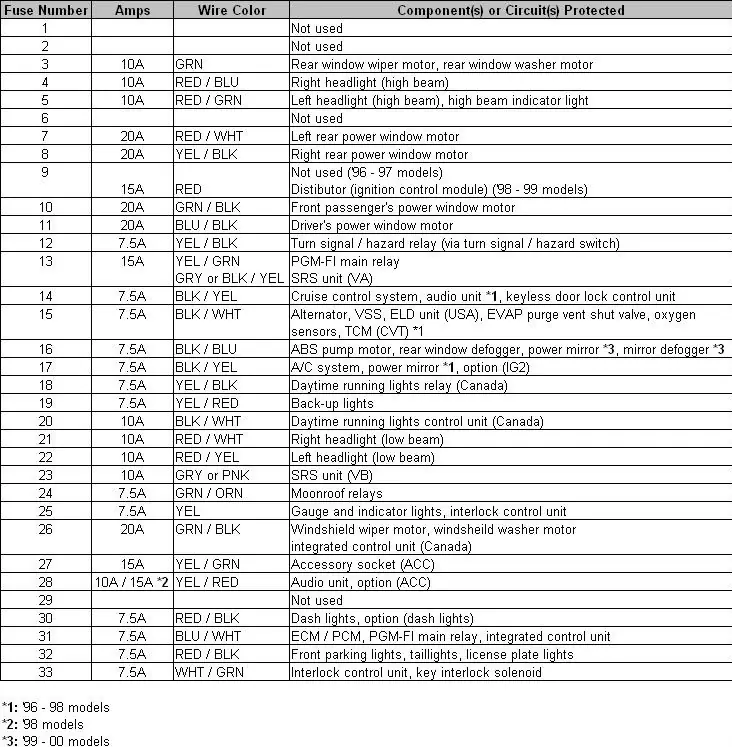

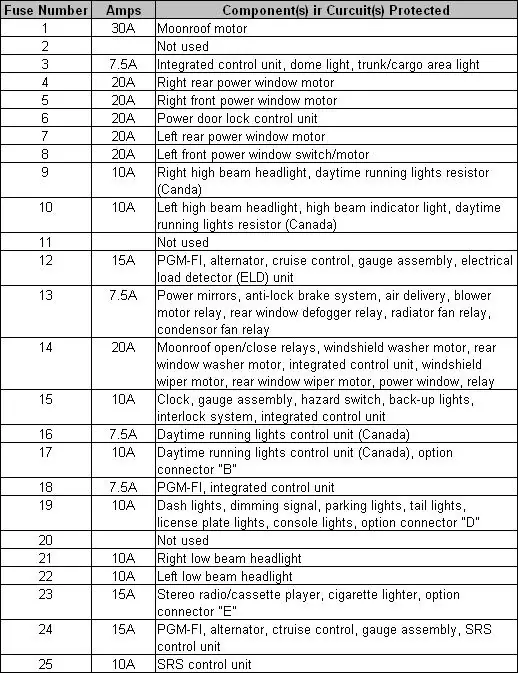

1996 - 2000 Civic * IN CAR * Fuse Diagram Explanation

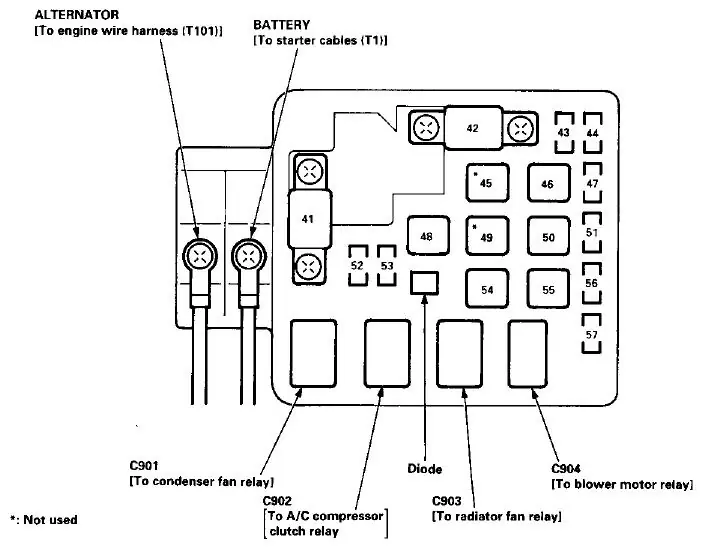

1996 - 2000 Civic * UNDERHOOD * Printable, to keep in your car
COMING SOON!

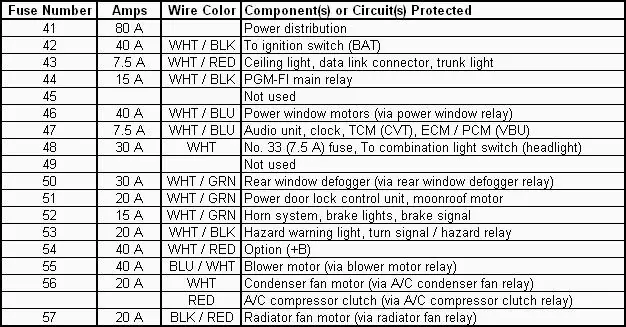

1996 - 2000 Civic * UNDERHOOD * Fuse Diagram Explanation
1992 - 1995 Civic

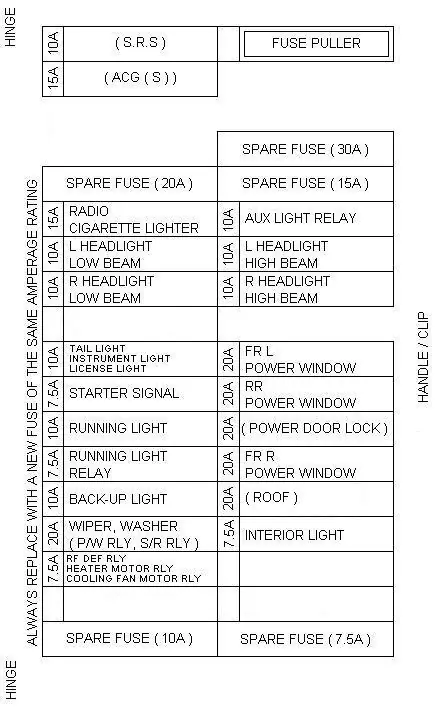

1992 - 1995 Civic * IN CAR * Printable, to keep in your car

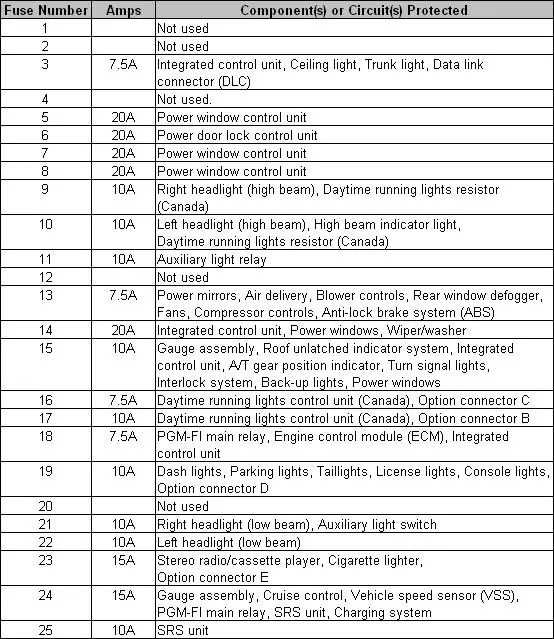

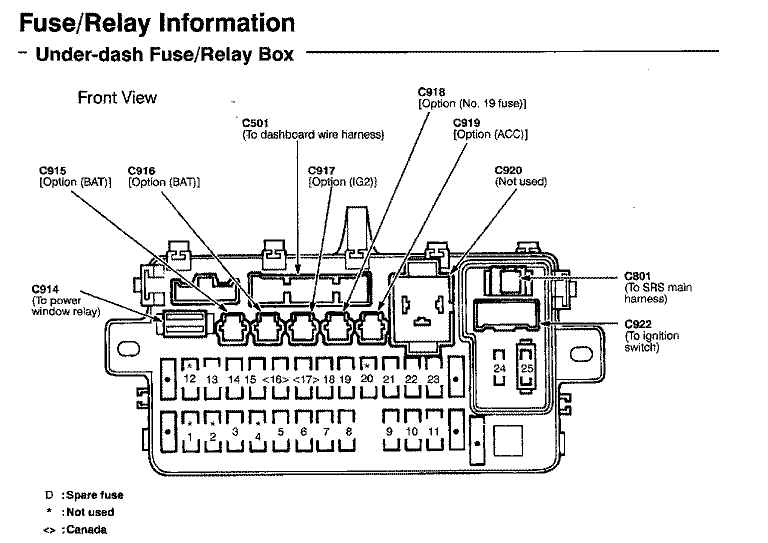

1992 - 1995 Civic * IN CAR * Fuse Diagram Explanation
1992 - 1995 Civic * UNDERHOOD * Printable, to keep in your car
COMING SOON!
1992 - 1995 Civic * UNDERHOOD * Fuse Diagram Explanation
COMING SOON!
1993 - 1997 del Sol
1993 - 1997 del Sol * IN CAR * Printable, to keep in your car
1993 - 1997 del Sol * IN CAR * Fuse Diagram Explanation

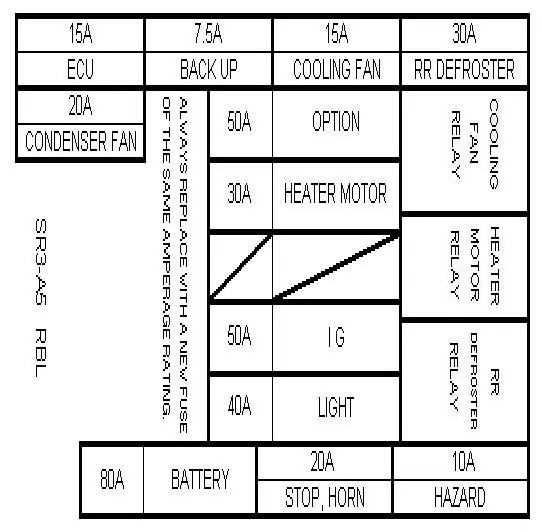

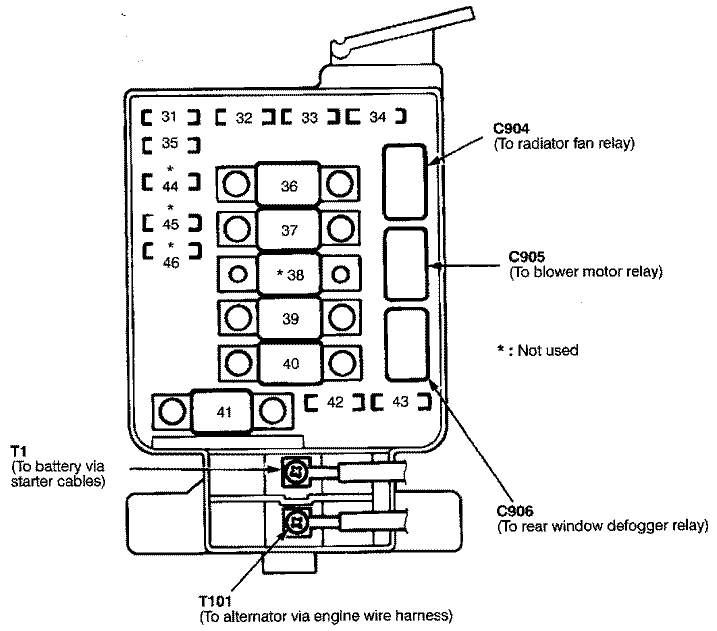

1993 - 1997 del Sol * UNDERHOOD * Printable, to keep in your car
1993 - 1997 del Sol * UNDERHOOD * Fuse Diagram Explanation
Front
Rear
Ceiling light Trunk Data link connector DLC resistor indicator Auxiliary mirrors Air delivery Blower defogger Fans Compressor Anti-lock brake system ABS Integrated Wiper washer Gauge assembly Roof unlatched indicator system A/T gear position Option connector C B Engine control module ECM Console lights D Stereo radio cassette player Cigarette lighter E Cruise control Vehicle speed sensor VSS SRS unit Charging system not used rear window wiper motor washer motor right Left headlight high beam indicator light power distributor ignition control module front passenger passenger's driver driver's turn signal hazard relay switch PGM-FI main SRS unit VA cruise control system audio unit keyless door lock alternator VSS ELD USA EVAP purge vent shut valve oxygen sensors TCM CVT ABS pump defogger defogger A/C air condition conditioner conditioning option IG2 daytime running Canada low beams VB moonroof relays relay gauge and indicator interlock windshield wiper windshield washer integrated accessory socket ACC audio dash ECM PCM PGM-FI front parking taillights license plate key solenoid fuse panel diagram map 1996 1997 1998 1999 2000 96 97 98 99 00 '96 '97 '98 '99 '00 coupe hatch sedan inter lock interlock unit h/l low high beam p/w power window windows dr door doors lock locks as license tail lights taillights starter signal running ig coil ignition instrument back up back-up backup rr-r rr-l radio clock heater a/c relay security cigarette lighter acc accessory socket rr def relay fr wiper washer alternator sp sensor meter cruise control fuel pump srs turn amperage amp fuse box diagram
espero y no sea repost,
ahhhhhhh y ay disculpen que no pude traducir, pero ps ay mas o menos se le entiende no?
